MB7395 HRXL-MaxSonar-WRBT
MB7395 HRXL-MaxSonar-WRBT
Wide beam. Ranges from 500mm to 1525mm with 6.33Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
$99.65
Collapsible content
Description

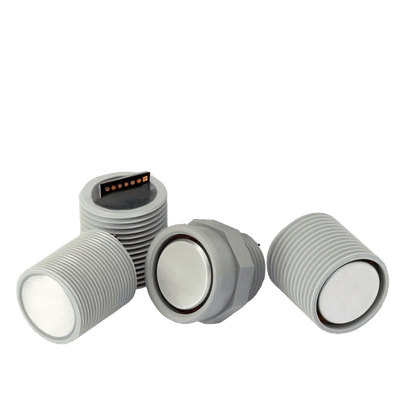

The weather resistant HRXL-MaxSonar-WRBT is a rugged, ultrasonic sensor component module. This outdoor sensor provides wide-angled detection and ranging out to five feet in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
The HRXL-MaxSonar-WRBT MB7395 ultrasonic sensor features a maximum range of 5 feet (1525mm). The MB7395 is our sensor with the widest detection zone.
High-output, acoustic power, combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise-free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL‑MaxSonar-WR sensors are factory calibrated.
Variations on this sensor model
MB7375 is the RS232 version of this sensor.
Models with additional chemical resistance are available
The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.
Specs
- Resolution of 1-mm
- 6.33Hz read rate
- Internal temperature compensation
- 42kHz ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
- Operates from 2.7-5.5V
- Low 2.9mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product
- Operational temperature -40°C to +65°C (-40°F to +149°F)
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option
- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

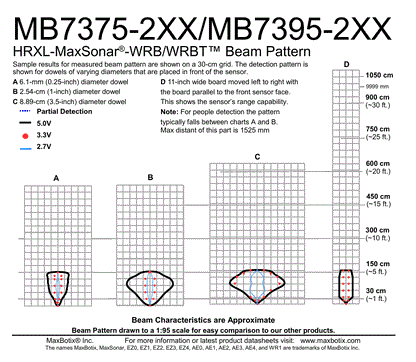

- Short, wide detection zone
- TTL Serial Output
- Maximum range of five feet (1525 mm)
Documentation and CAD files
Documents
Chemical Compatibility
-
Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.
Email: [email protected]
Product 3D Models
200 Housing (Compact Horn Housing)
500 Housing (1″ BSPP Housing)
600 Housing (1″ NPS Housing)
700 Housing (30mm 1.5 Housing)
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB7395 HRXL-MaxSonar-WRBT
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
